| Manufacturer | Cincoze |
| Product ID | DX-1200-R10 |
| CPU |
Supports Intel 13th/12th Gen Core Processors, Raptor Lake/Alder Lake Socket LGA 1700 Supports up to 65W TDP |
| Chipset | Intel R680E |
| Memory |
2 x DDR5 SODIMM slots Supports up to 64GB Capacity Supports Unbuffered and ECC 4800 MHz |
| Video |
Intel UHD Graphics (CPU Dependent) VGA Max Resolution: 1920x1080@60Hz DVI-D Max Resolution: 1920x1200@60Hz DisplayPort Max Resolution: 3840x2160@60Hz HDMI Max Resolution: 3840x2160@30Hz Supports Triple Displays |
| Audio | Realtek ALC888 HD Audio |
| Storage Technology |
2 x SATA Connectors 2 x mSATA Socket (Shared by Mini PCI-E slots) Support RAID 0/1/5/10 |
| Connectivity |
1 x Intel I219 GbE LAN 1 x Intel I210 GbE LAN Supports Wake On LAN Supports PXE |
| Expansion Slots |
2 x Mini PCI-E slots (Supports mSATA) 1 x SIM Sockets 2 x High Speed CMI Interface 1 x Low Speed CMI Interface 1 x CFM IGN Interface 1 x M.2 2230 slot (CNVi) |

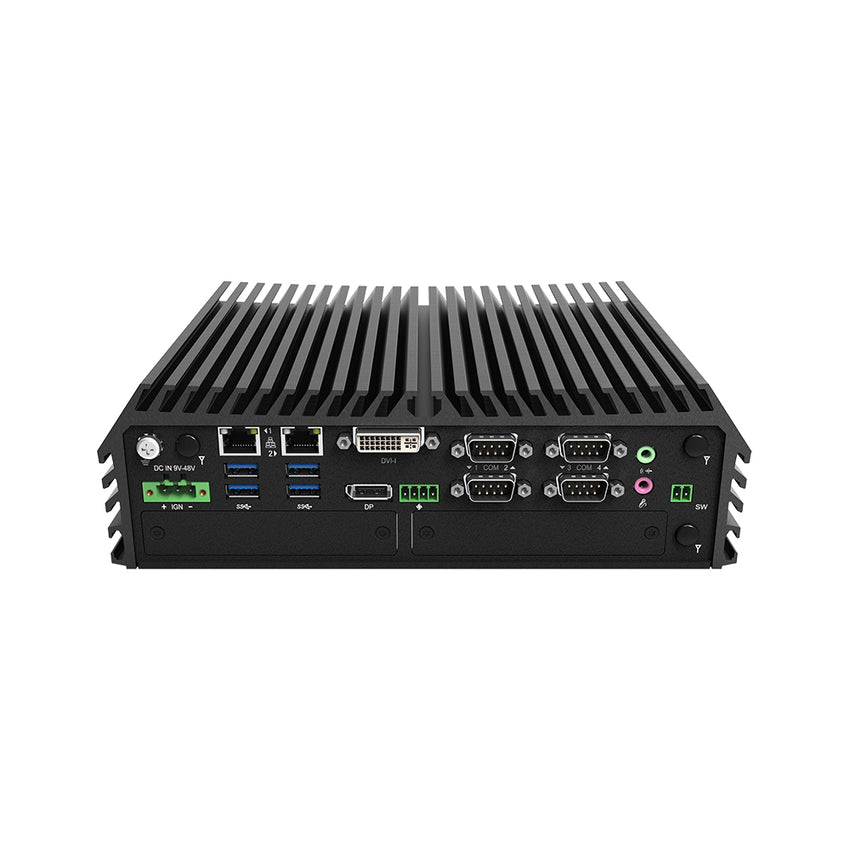

| Rear Panel I/O |
1 x GND SCrew 3 x Antenna Cutout 1 x 3-Pin Terminal Block 9-48VDC DC-IN 2 x RJ45 GbE LAN 4 x USB 3.2 (Gen2x1) 1 x DVI-I 1 x DisplayPort 1 x 4-Pin Terminal Block Fan Connector 4 x COM (RS232/42/485 with Auto Flow Control, Supports 5V/12V) 2 x Audio I/O 1 x 2-Pin Terminal Block Power Switch Connector |

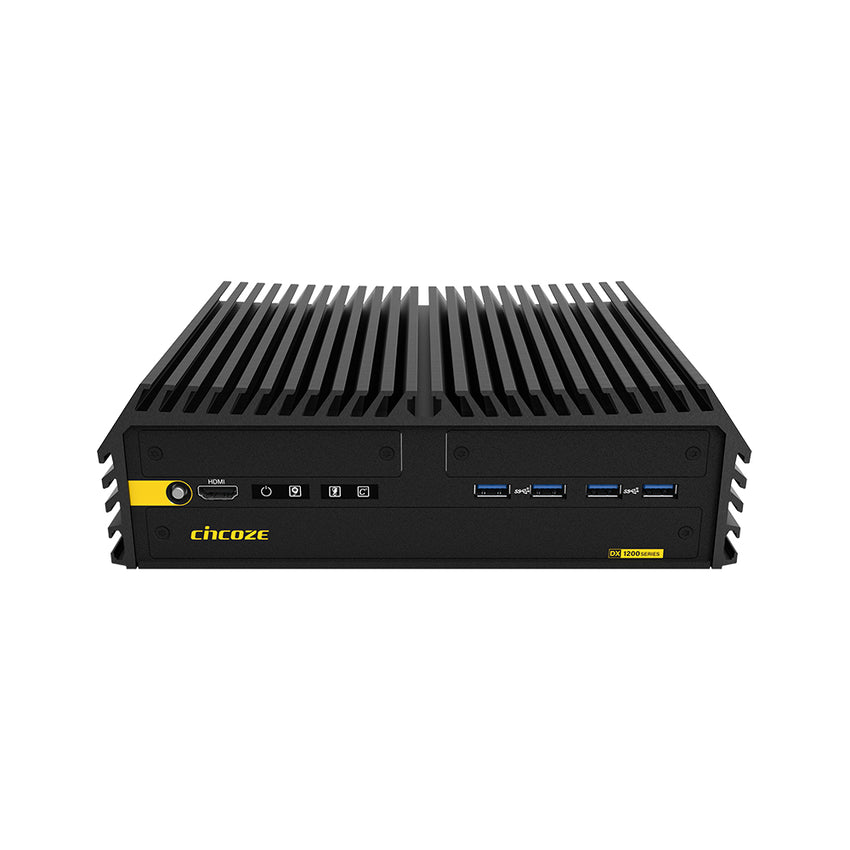

| Front Panel I/O |
1 x Power Button 1 x HDMI 4 x Status LED (Power, HDD, LAN, System) 4 x USB 3.2 (Gen1x1) |
| Drive Support |
2 x 2.5" SATA Drive Bays 2 x Mini PCI-E slots (Supports mSATA) |
| OS Support |
Windows 10 Windows 11 Ubuntu 22.04 |
| Power Supply |
9-48V Terminal Block DC-IN Reverse Power Input Protection Over Voltage Protection: 51 - 58V Over Current Protection: 15A SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| Case Dimensions |
242 x 173 x 75mm 9.5" x 6.8" x 2.95" (in inches) |
| Cooling |
Optional External Top Fan (Recommended for CPU 65W) |
| Mounting |
Wall / DIN Rail / VESA / Side Mount |
| Environmental |
Operating Temperature 35W TDP Processor: -40°C to 70°C (-40°F to 158°F) Operating Temperature 65W TDP Processor: -40°C to 50°C (-40°F to 122°F) Note: With External Fan Kit Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Relative Humidity: 95% RH @70°C (non-condensing) Shock: MIL-STD-810G Vibration: MIL-STD-810G |
| Compliance |
CE, UKCA, FCC, ICES-003 Class A EN 50155 (EN 50121-3-2 Only) CISPR 32 Conducted & Radiated: Class A EN/BS EN 50121-3-2 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A UL, cUL, CB, IEC, EN 62368-1 |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: DX-1200-R10
