| Manufacturer | Jetway |
| Product ID | HBFBU03-6412-B |
| Model Name | FBU03 |
| CPU | Intel Celeron J6412 Processor 4 Cores / 4 Threads 2.0 - 2.6 GHz 10W TDP, 1.5MB L2 Cache |
| Chipset | SoC |
| Memory | 1 x DDR4 SODIMM slot 3200 MHz Maximum 32GB Capacity |
| Video | Intel UHD Graphics 400 - 800 MHz 16 Execution Units HDMI Max Resolution: 4096x2160@60Hz DisplayPort Max Resolution: 4096x2160@60Hz Supports 3 Displays |
| Audio | Realtek ALC888S HD Audio |
| Storage Technology | 1 x M.2 2280/2260 slot (PCI-E 3.0 x2/SATA, M Key) |
| Connectivity | 2 x Intel I225V 2.5GbE LAN |
| Expansion Slots | 1 x M.2 2230 slot (PCIe/USB, E Key) |

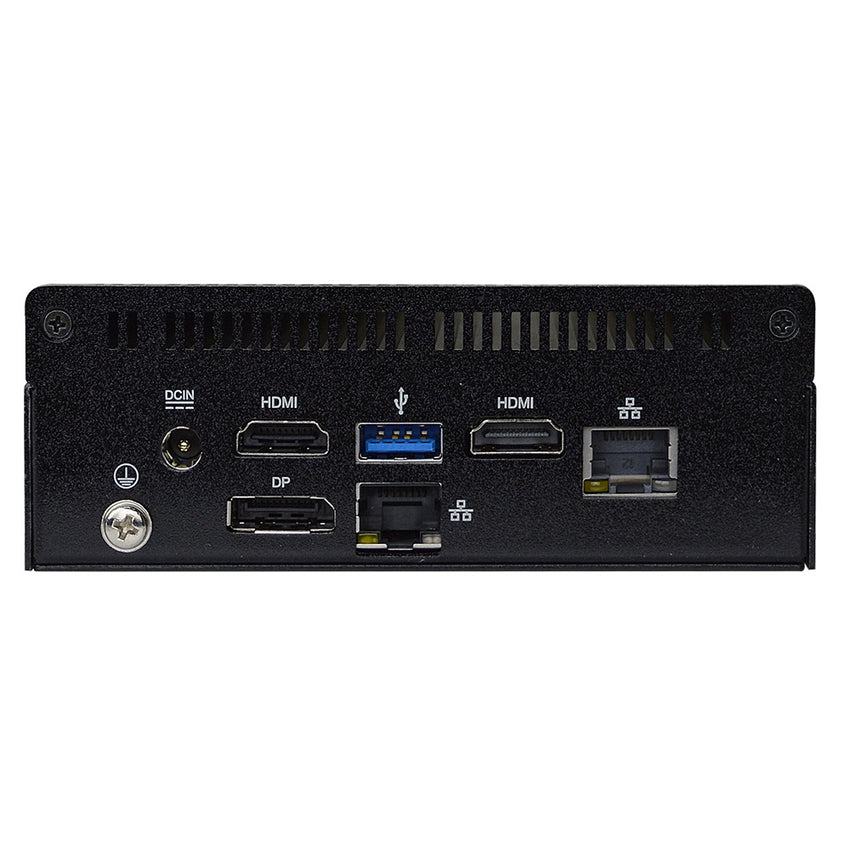

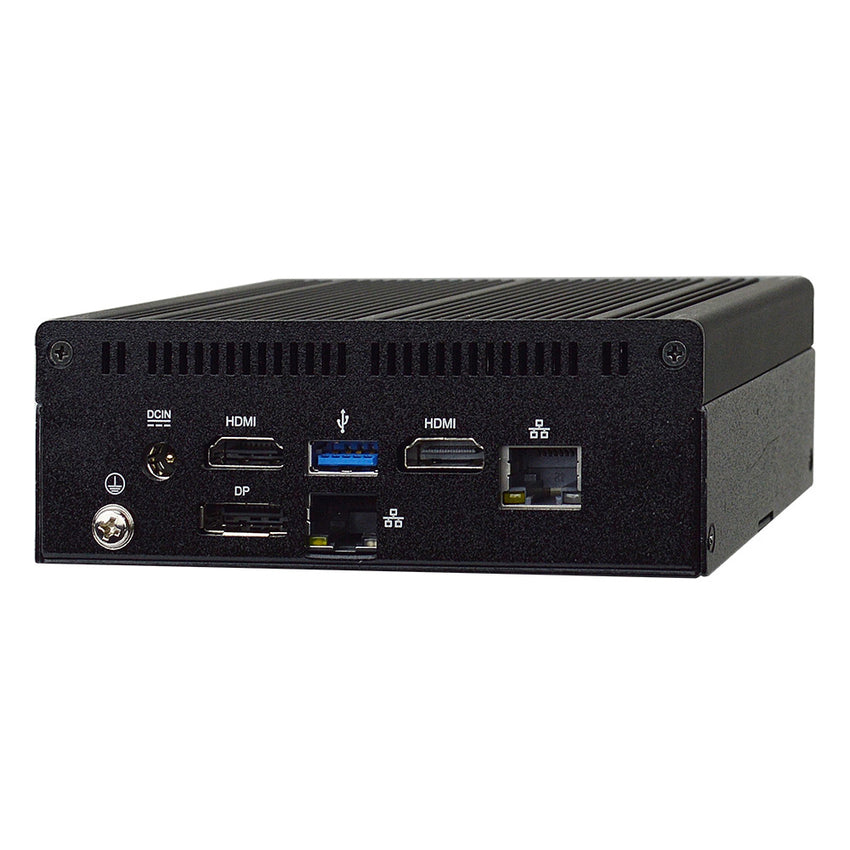

| Rear Panel I/O | 2 x Antenna Cutout 1 x GND Screw 1 x 12V DC-IN 1 x DisplayPort 2 x HDMI 1 x USB 3.2 (Gen2) 2 x RJ45 2.5GbE LAN |

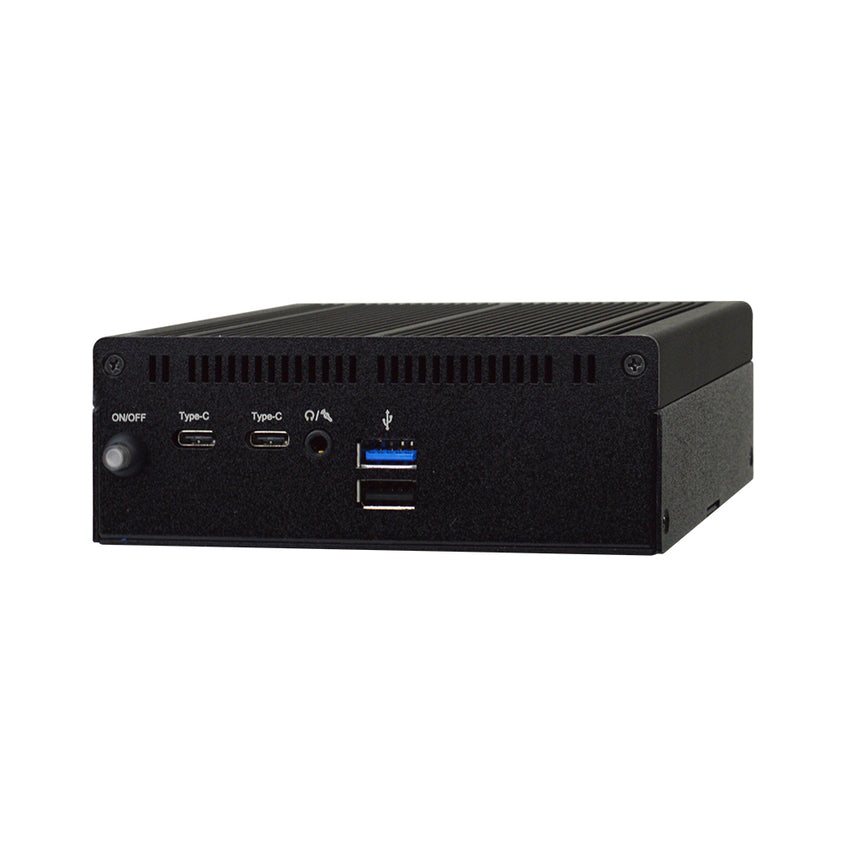

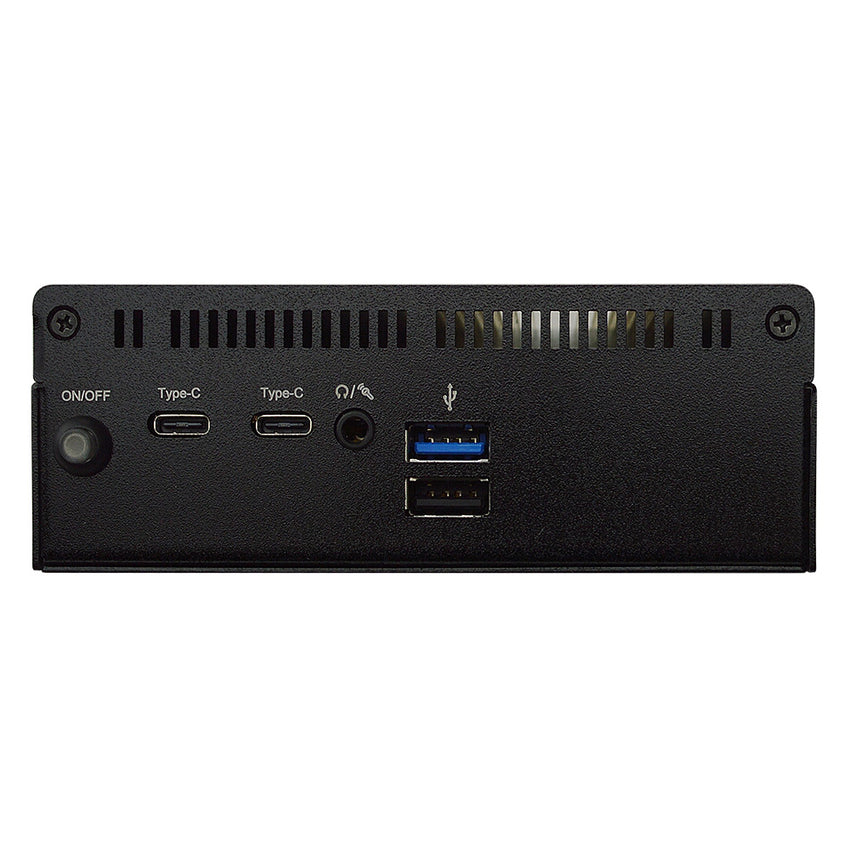

| Front Panel I/O | 1 x Power Switch 1 x USB 2.0 1 x USB 3.2 (Gen2) 1 x 3.5mm Audio In/Out 2 x USB 3.2 (Gen2) Type-C |
| Drive Support | 1 x M.2 2280/2260 slot (PCI-E 3.0 x2/SATA, M Key) |
| OS Support | Windows 10 Windows 11 Linux |
| Power Supply | 12V DC-IN 40W 12V AC-DC Adapater AC 90-240V Input |
| Case Dimensions | 125 x 109.2 x 44.5mm 4.9" x 4.3" x 1.75" (in inches) |
| Mounting | Wallmount Bracket |
| Environmental | Operating Temperature: -20°C to 60°C (-4°F to 140°F) Non-operating Temperature: -20°C to 60°C (-4°F to 140°F) Humidity: 10% to 90% RH@60°C (non-condensing) |
| Compliance | CE, FCC, ErP, RoHS For Barebone CE, FCC, TUV, UL, CCC, CB, ErP For Power Adapter |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: HBFBU03-6412-B
