| Manufacturer | Jetway |
| Product ID | HBFDF835i-8365-F |
| Model Name | FDF835F |
| CPU |
Intel Core i5-8365UE Processor 4 Cores / 8 Threads 1.60 - 4.10 GHz 15W TDP, 6MB Intel Smart Cache Supports vPro |
| Chipset |
SoC Intel fTPM 2.0 (PTT) Trusted Computing Firmware |
| Memory |
2 x DDR4 SODIMM slots Maximum 64GB Capacity 2400 MHz |
| Video |
Intel UHD Graphics 620 300 MHz - 1.05 GHz 24 Execution Units HDMI Max Resolution: 4096x2160@30/24Hz DisplayPort Max Resolution: 4096x2304@60Hz Supports Dual Displays |
| Audio | Realtek ALC888 HD Audio |
| Storage Technology |
1 x SATA3 6Gb/s Connector 1 x M.2 2242/2260/2280 slot: PCI-E 3.0 x4/SATA |
| Connectivity |
1 x Intel I219-LM PHY GbE LAN 1 x Intel I211-AT GbE LAN Wireless 802.11ac and Bluetooth |
| Expansion Slots |
1 x M.2 2230 slot (Occupied by WIFI) |

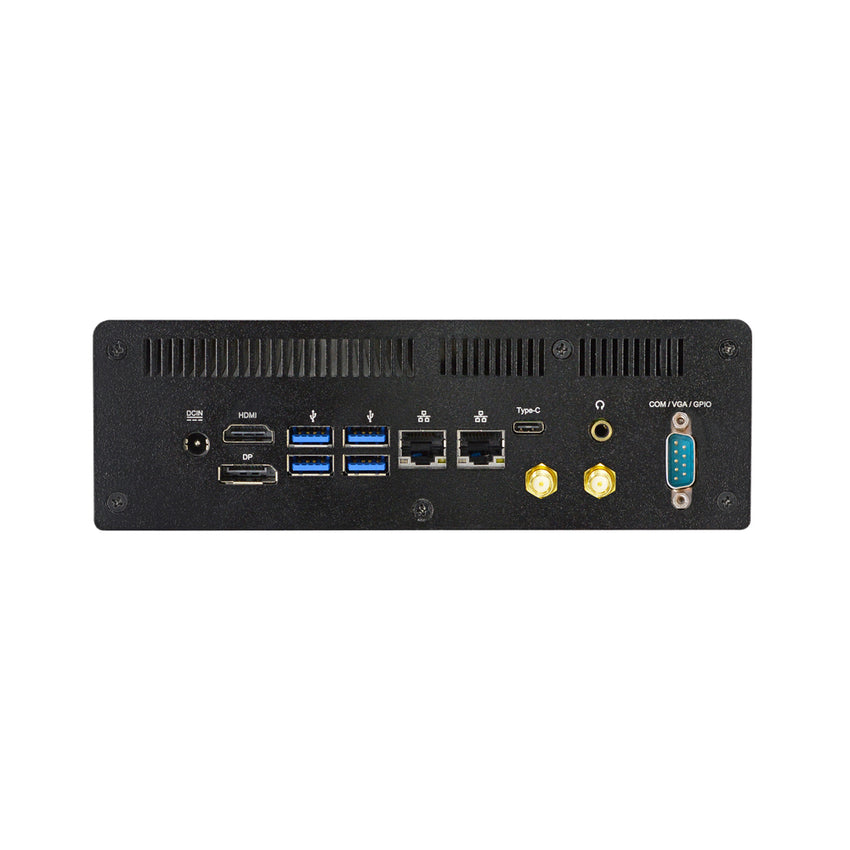

| Rear Panel I/O |
1 x 9-24V DC-IN (2.5/5.5mm) 1 x HDMI 1.4 1 x DisplayPort 4 x USB 3.1 (Gen2) 2 x RJ45 GbE LAN 1 x USB 3.1 (Gen2) Type-C 2 x WIFI Antenna Connectors 1 x 3.5mm Line Out 1 x COM Port (RS232) |

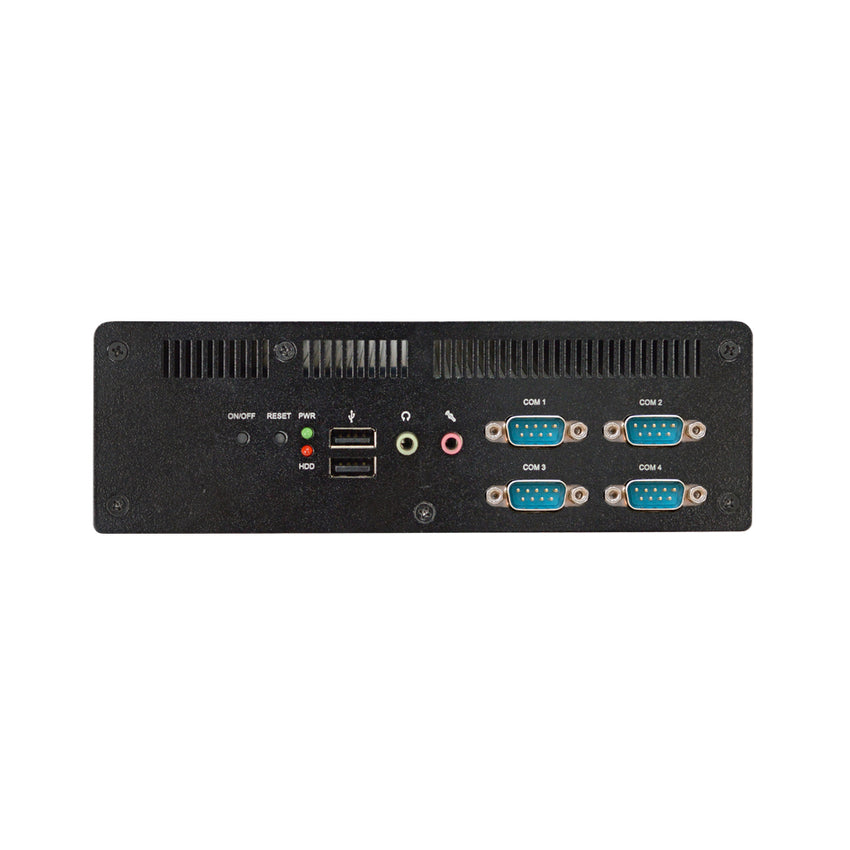

| Front Panel I/O |
1 x Power Button 1 x Reset Button 2 x Status LED (Power, HDD) 2 x USB 2.0 2 x Audio I/O 1 x COM (RS232/422/485) 3 x COM (RS232) |
| Drive Support |
1 x 2.5" SATA Drive Bay 1 x M.2 2242/2260/2280 slot: PCI-E 3.0 x4/SATA |
| OS Support |
Windows 10, Windows 11 CentOS 7, Debian 9.8, Fedora 29.1.2, OpenSUSE 15, Ubuntu 18.04.1 pfSense 2.4.4, FreeNAS 11.2, Red Hat Enterprise 7.5, Android x86 8.1_rc2 |
| Power Supply |
9-24V DC In 90W 12V AC DC Adapter |
| Case Dimensions |
193 x 142.4 x 62mm 7.6" x 5.6" x 2.4" (in inches) |
| Mounting |
Wallmount DIN Rail |
| Environmental |
Operating Temperature: -20°C to 60°C (-4°F to 140°F) with M.2 SSD, 0°C to 50°C (32°F to 122°F) with 2.5" SATA Drive Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Humidity: 10% to 95% RH @ °C (non-condensing) |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: HBFDF835i-8365-F
