Manufacturer	Intel
Product ID	NUC12WSHI3
Model Number	RNUC12WSHI30001
CPU	Intel Core i3-1220P Processor 2 P-Cores / 8 E-Cores / 12 Threads 3.30 - 4.40 GHz 28W-64W TDP, 12MB Intel Smart Cache
Chipset	SoC
Memory	2 x DDR4 SODIMM slots Maximum 64GB Capacity 3200 MHz 1.2V
Video	Intel UHD Graphics 1.10 GHz HDMI Max Resolution: 4096x2304@60Hz Thunderbolt 4 Max Resolution: 7680x4320@60Hz Supports Four 4K Displays or One 8K Display
Audio	Realtek Audio Codec for 3.5mm Audio Jack 7.1 Multichannel Digital Audio via HDMI and Thunderbolt
Storage Technology	1 x SATA Connector 1 x M.2 2280 slot: PCI-E 4.0 x4 or SATA 1 x M.2 2242 slot: SATA Only
Connectivity	1 x Intel i225-V 2.5GbE LAN Intel WIFI 6E AX211 802.11ax Bluetooth 5.2
Expansion Slots	1 x M.2 2230 slot (Occupied by WIFI)

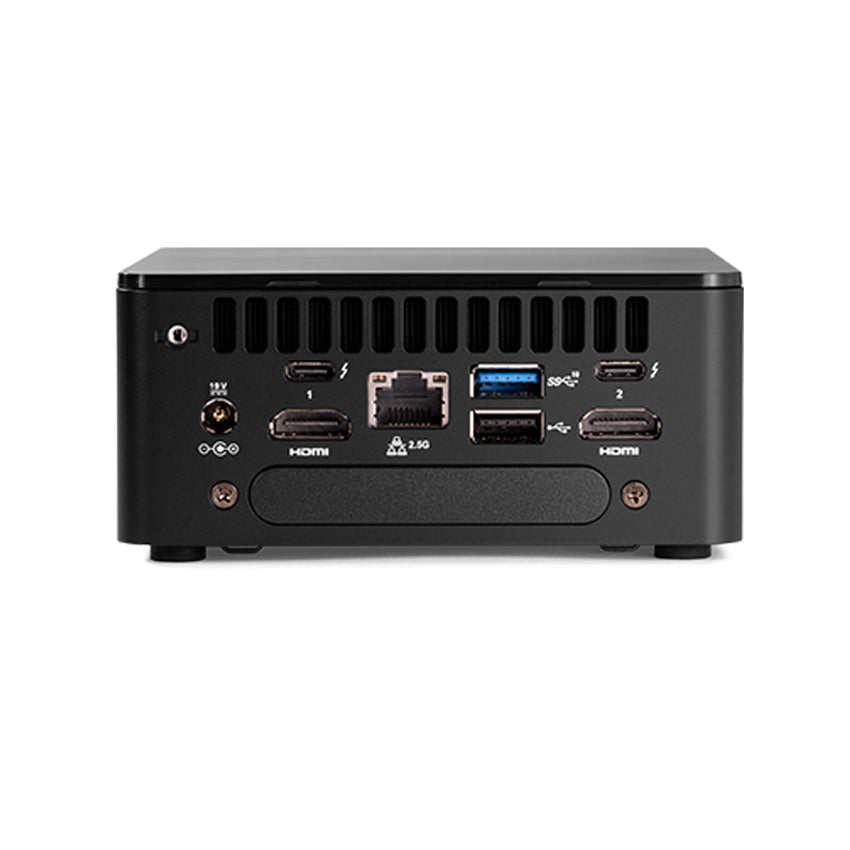

Rear Panel I/O	1 x 12-20V DC-IN 2 x Thunderbolt USB 4 (Type-C) 2 x HDMI 1 x RJ45 2.5GbE LAN 1 x USB 3.2 (Gen2) 1 x USB 2.0

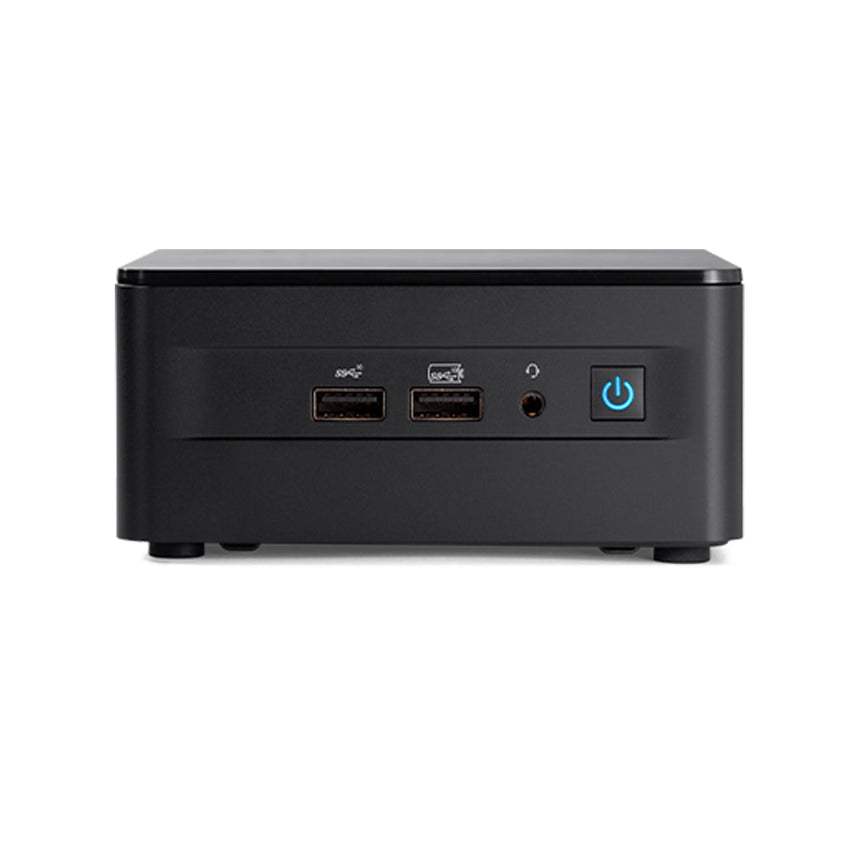

Front Panel I/O	2 x USB 3.2 (Gen2) 1 x 3.5mm Audio Out 1 x Power Button with LED
Side Panel I/O	1 x Kensington Lock
Drive Support	1 x 2.5" Drive Bay 1 x M.2 2280 slot (M Key, PCI-E 4.0 x4 or SATA) 1 x M.2 2242 slot (B Key, SATA)
OS Support	Windows 10 Windows 11 Linux
Power Supply	12-20V DC-IN 120W 20V Power Supply
Case Dimensions	117 x 112 x 54mm 4.6" x 4.4" x 2.1" (in inches)
Mounting	VESA Mount Kit
Environmental	Operating Temperature: 0°C to 40°C (32°F to 104°F)
Compliance	IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 FCC Part 15B/15C/15E, CISPR/EN 55032/55024, ICES-003, VCCI 32 BSMI CNS 13438, KN 32/35, AS/NZS CISPR 32, EN 300 328, EN 301 893, EN 300 440 EN 301 489-1/3/17, EN 62311, AS/NZS 4268, AS/NZS 2772.2, ARPANSA EU RoHS, China RoHS, Taiwan BSMI RoHS, REACH
Warranty	1-Year Warranty on Parts and Labor
