| Manufacturer | Supermicro |
| Product ID | SYS-5049A-T |
| CPU | Supports Intel Xeon Scalable Processors LGA 3647, Socket P Supports CPU up to 205W TDP |
| Chipset | Intel C621 |
| Memory | 12 x DDR4 RDIMM/LRDIMM slots 2133MHz Minimum Supports up to 3TB 3DS ECC RDIMM/LRDIMM Supports up to 768GB ECC RDIMM Supports up to 1.5TB ECC LRDIMM Intel Optane DCPMM Ready (Cascade Lake CPU only) |
| Video | Aspeed AST2500 BMC |
| Storage Technology | 8 x SATA3 6.0Gb/s Ports Supports RAID 0, 1, 5, 10 4 x M.2: PCI-E 3.0 x4 (shared with PCI-E 3.0 x16 slot) Supports RAID 0, 1 (VROC Key required for RAID) |
| Connectivity | 1 x Aquantia AQC107 10G LAN 1 x Intel I210-AT 1GbE LAN 1 x Realtek RTL8211E PHY Dedicated IPMI |
| Expansion | 1 x PCI-E 3.0 x16 Note: slot_1 shared with 4 x M.2 slots 6 x PCI-E 3.0 x16 Note: slot_2 and slot_3 shared (x16, x8/x8) slot_4 and slot_5 shared (x16, x8/x8) slot_6 and slot_7 shared (x16, x8/x8) |

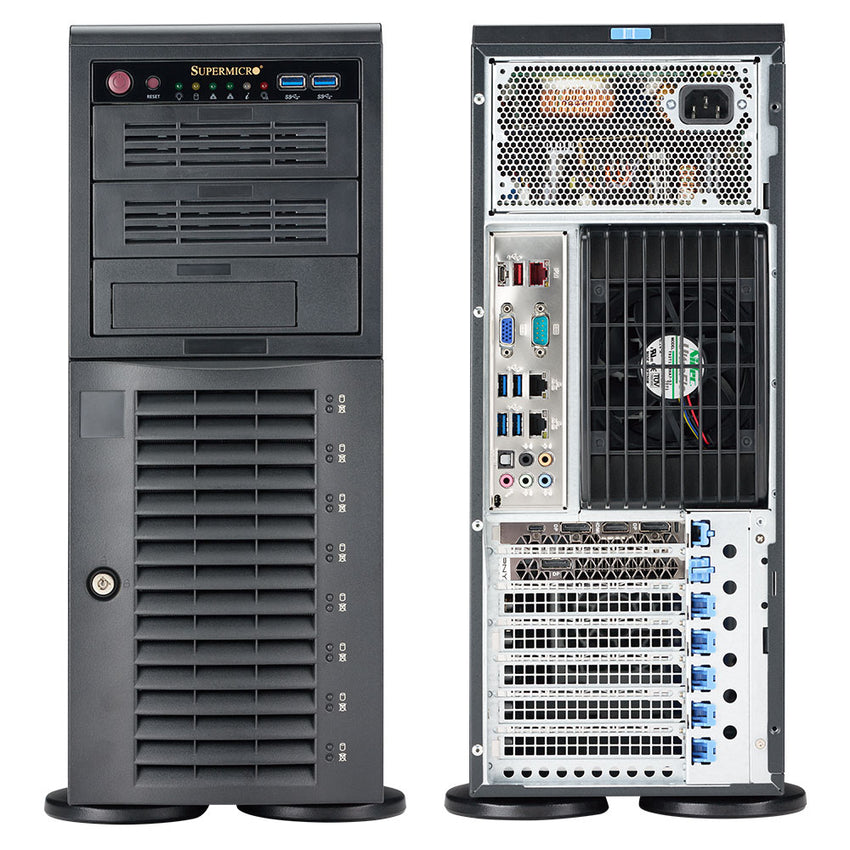

| Rear I/O | 1 x RJ45 Dedicated IPMI 1 x USB 3.1 Type-A (Gen2) 1 x USB 3.1 Type-C (Gen2) 1 x COM 1 x VGA 1 x RJ45 GbE LAN 4 x USB 3.1 (Gen1) 1 x RJ45 10G LAN 5 x Audio I/O 1 x S/PDIF Out |
| Front Panel I/O | 1 x Power Button 1 x Reset Button 6 x Status LED (Power, HDD, LAN, BMC, Event) 2 x USB 3.1 (Gen1) |

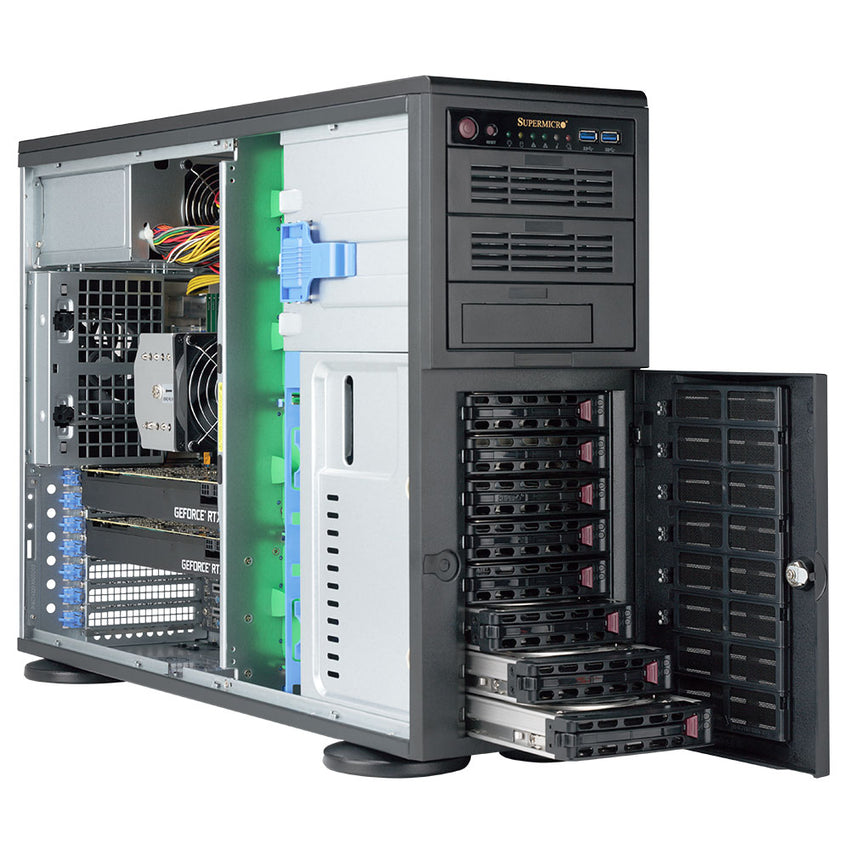

| Drive Support | 3 x 5.25" Drive Bays 8 x 3.5" Hot Swap SATA Drive Bays |
| Power Supply | 1200W 80 PLUS Platinum Power Supply with PMBus AC Input 1000W: 100-114.9V, 50-60Hz, 12 Amp AC Input 1200W: 114.9-240V, 50-60Hz, 12-8 Amp |
| Cooling | 1 x 90x25mm Rear Exhaust Fan 2 x 80x25mm PWM Fans (Supports up to 4) |

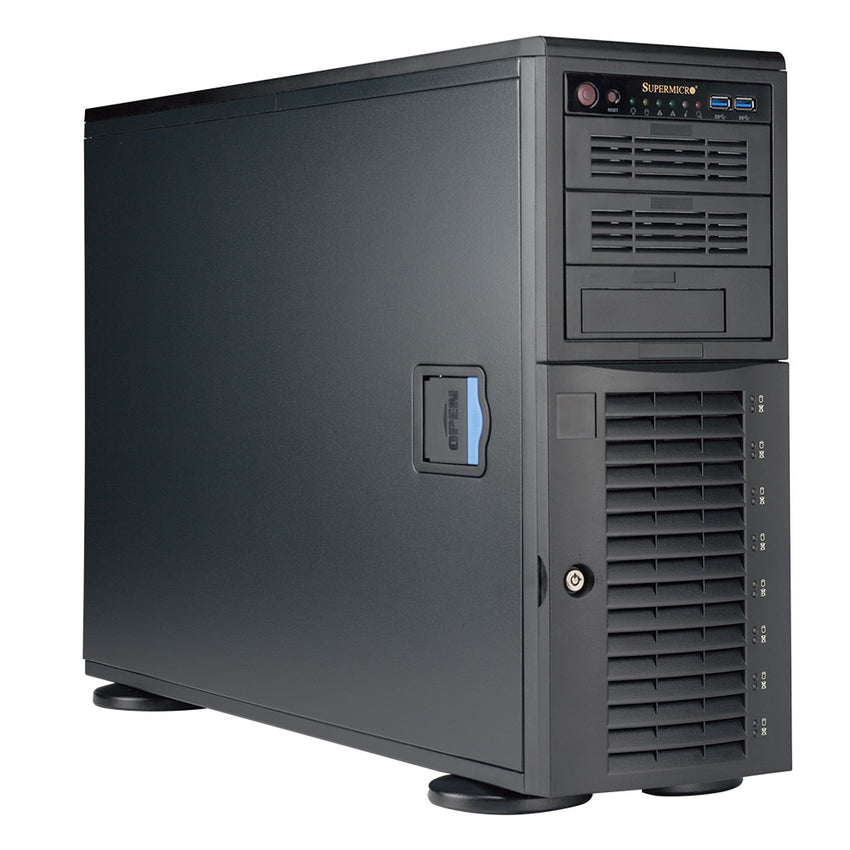

| Case Dimensions | 4U Rackmountable / Tower 25.5" x 7.0" x 17.8" (in inches) 648 x 178 x 452mm Weight: 71 lbs, 32.2 kg |
| Environmental | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Humidity: 8% to 90% (non-condensing) Non-operating Humidty: 5% to 95% (non-condensing) |
| Compliance | RoHS |
| Warranty | 1 Year Manufacturer's Limited Warranty on Parts 3 Year manufacturer's Limited Warrany on Labor |
PRODUCT ID: SYS-5049A-T
