| Manufacturer | Supermicro |
| Product ID | SYS-E100-9S-L |
| CPU | Intel Core i3-7100U Processor 2.40 GHz 2 core / 4 Threads 15W TDP, 3MB SmartCache |
| Chipset | SoC |
| Memory | 2 x DDR4-2133MHz SODIMM slots Maximum 32GB capacity non-ECC, Unbuffered Memory Only |
| Video | Intel HD Graphics 620 300 MHz - 1.00 GHz 32GB Max Graphics Video Memory HDMI Max Resolution: 4096x2304@24Hz DisplayPort: 4096x2304@60Hz |
| Audio | Intel HD Audio |
| Storage Technology | mSATA: SATA3 6.0Gb/s M.2: PCI-E 3.0 x1 and SATA support |
| Connectivity | 1 x Intel I210-IT GbE LAN 1 x Intel PHY I219-LM GbE LAN |
| Expansion Slots | 1 x Mini PCI-E slot (Full size) with mSATA support 1 x M.2 2280 slot (SATA or PCI-E 3.0 x1, B Key) |

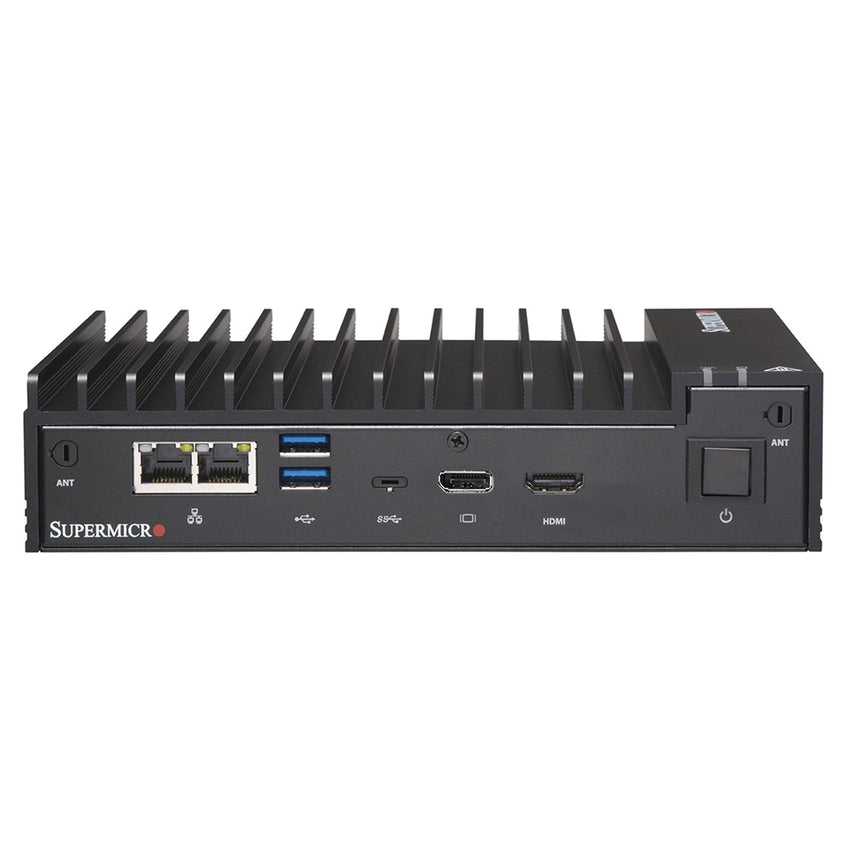

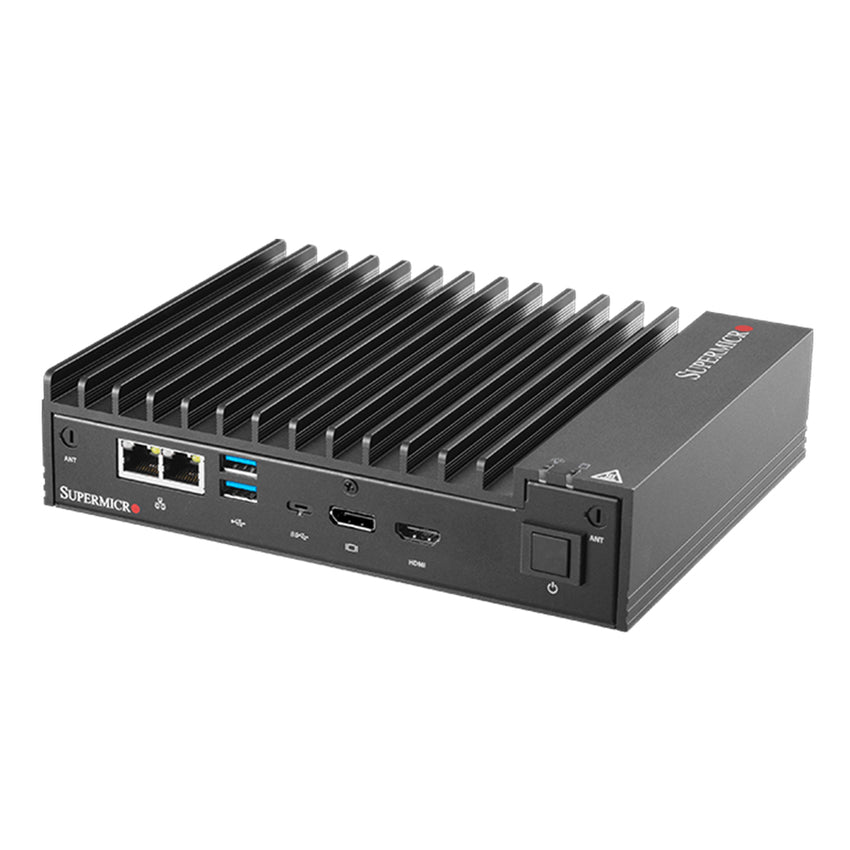

| Front Panel I/O | 2 x RJ45 GbE LAN 2 x USB 3.0 1 x USB 3.1 Type-C 1 x DisplayPort 1 x HDMI 1 x Power Button |

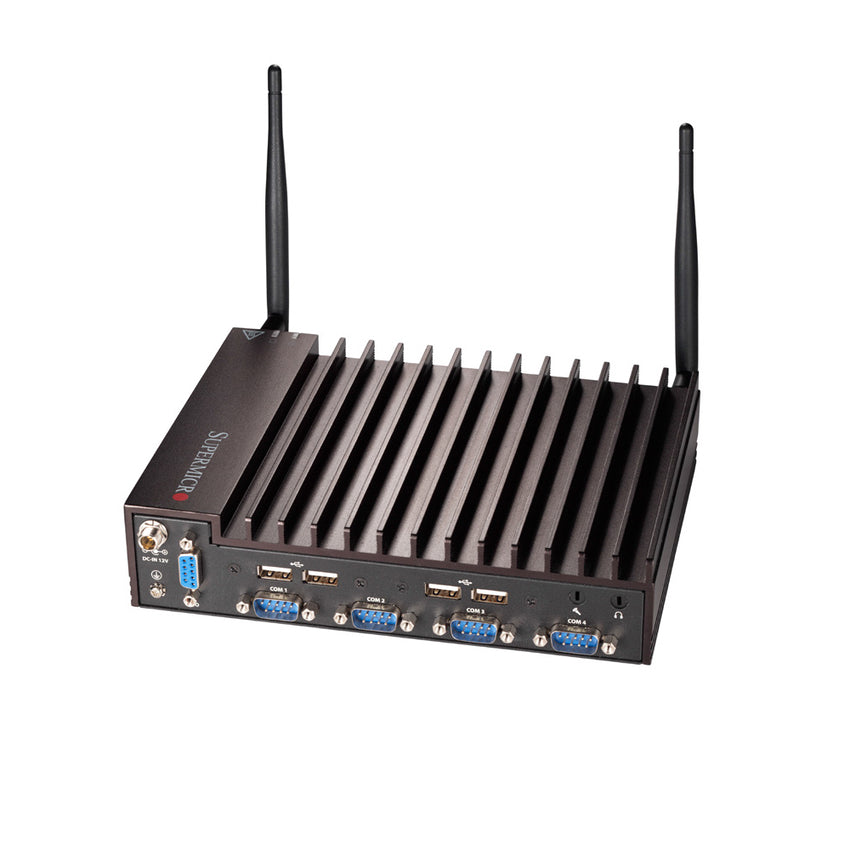

| Rear Panel I/O | 1 x 12V DC-IN 1 x Ground Screw 1 x DIO 4 x USB 2.0 2 x COM Port (RS232/422/485) 2 x COM Port (RS232) |
| Drive Support | 1 x mSATA via Mini PCI-E slot 1 x M.2 2280 slot (B Key, SATA or PCI-E 3.0 x1) |
| Power Supply | 12V DC-IN 60W 12V Locking Power Supply |
| Case Dimensions | 151 x 44 x 195mm 5.94" x 1.73" x 7.68" (in inches) Weight: 2.65 lbs, 1.2 kg |
| Environmental | Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidty: 8% - 90% (non-condensing) Non-Operating Humidity: 5% - 95% (non-condensing) |
| Compliance | RoHS Compliant |
| Warranty | 1-Year Manufacturer's Limited Warranty on Parts 3-Year Manufacturer's Limited Warranty on Labor |
PRODUCT ID: SYS-E100-9S-L
