| Manufacturer | GigaIPC |
| Product ID | QBIX-ADNAN97-A1 |
| CPU |
Intel N97 Processor 4 Cores 3.60 GHz 12W TDP, 6MB Intel Smart Cache |
| Chipset |
SoC Onboard Nuvoton NPCT760AABYX TPM 2.0 |
| Memory |
1 x DDR5 SODIMM slot Maximum 16GB Capacity 4800 MHz |
| Video |
Intel UHD Graphics 1.20 GHz 24 Execution Units HDMI Max Resolution: 4096x2160@60Hz Supports 2 Independent Displays |
| Audio |
Realtek ALC269 |
| Storage Technology |
1 x M.2 2280 slot: PCI-E 3.0 x1 or SATA (M-Key) |
| Connectivity |
2 x Realtek RTL8111H GbE LAN |
| Expansion Slots |
1 x M.2 2230 slot (E-Key) |

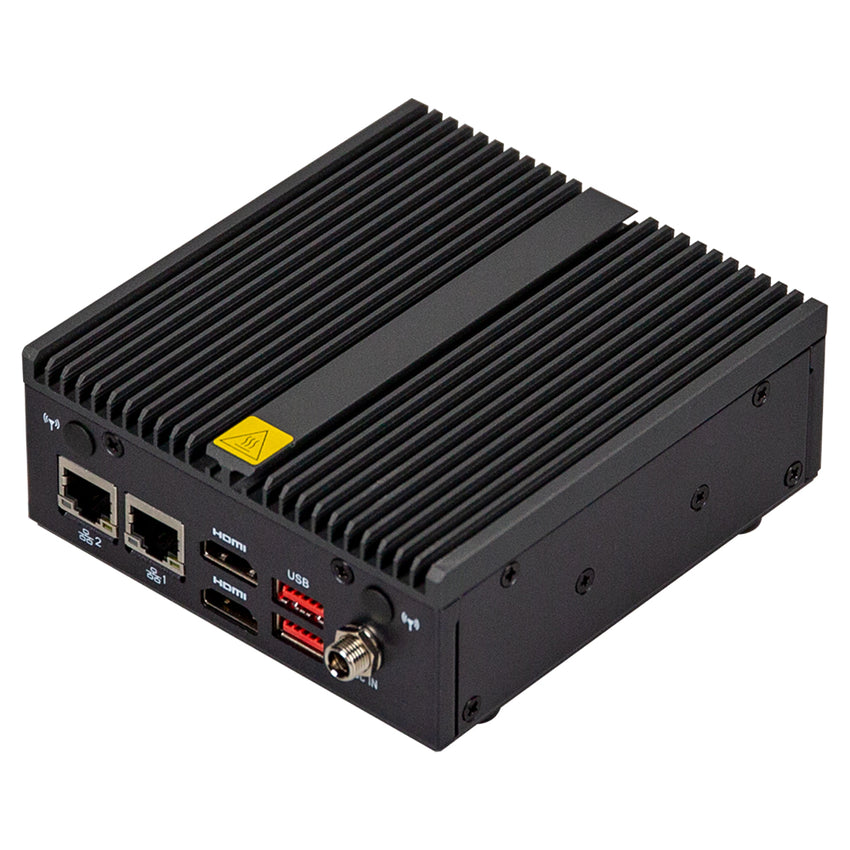

| Rear Panel I/O |
2 x Antenna Cutout 2 x RJ45 GbE LAN 2 x HDMI 2 x USB 3.2 (Gen2x1) 1 x 12-19V DC-IN |

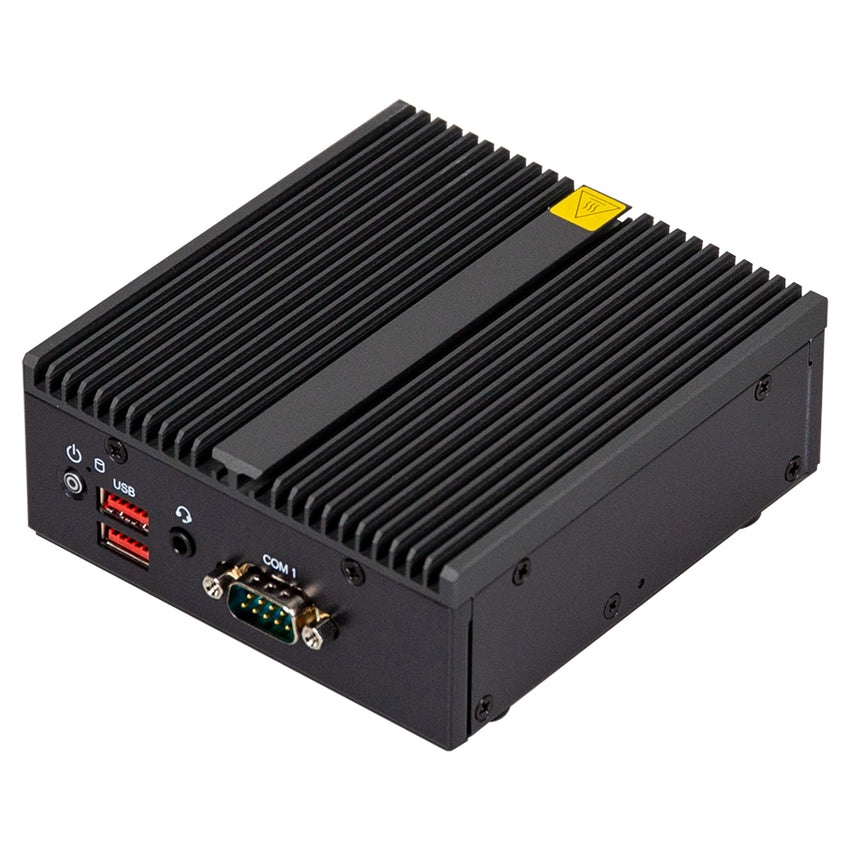

| Front Panel I/O |
1 x Power Button with LED 2 x USB 3.2 (Gen2x1) 1 x Combo Audio Jack 1 x COM (RS232) |
| Drive Support |
1 x M.2 2280 slot (PCI-E 3.0 x1/SATA, M-Key) |
| OS Support |
Windows 10 Windows 11 |
| Power Supply |
12-19V DC-IN 65W 19V AC-DC Adapter 100-240VAC |
| Case Dimensions |
118 x 109.4 x 44.4mm 4.65" x 4.31" x 1.75" (in inches) |
| Mounting |
Includes VESA Bracket and VESA Screws |
| Environmental |
Operating Temperature: 0°C to 50°C (32°F to 122°F) Non-operating Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 0% to 90% (non-condensing) Non-Operating Humidity: 0% to 95% (non-condensing) Operating Vibration: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-Operating Vibration: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Operating Shock: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Warranty | 1-Year Warranty on Parts and Labor |
PRODUCT ID: QBiX-ADNAN97-A1
